EMT T-series connection

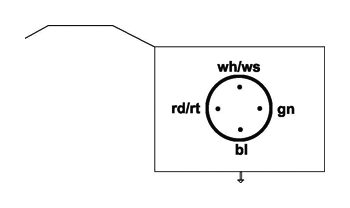

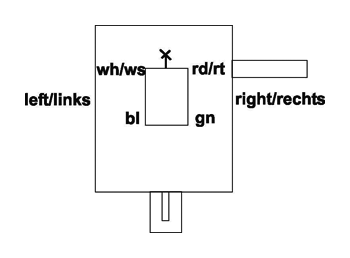

Please find here the connection layout of the EMT T-series pick-up’s as well as of the EMT tone arms wiring:

Only the right chanel is wired at pick-up’s of the O-series.

Pin Description of EMT Cartridges			tonearm 5 pin		tonearm 7 pin
wh / ws	white	left (+)	2		2
bl	blue	left (-)	1		1
rd / rt	red	right (+)	4		6
gn	green	right (-)	5		7
			3	case	4
