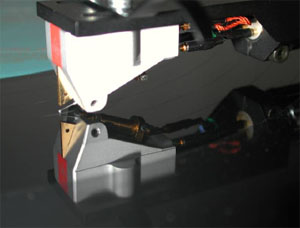

EMT J-series pick-up’s

Audiophile MC-cartridge with diamond either as FGS- or SFL-shape. Naked orientated natur diamond.
Half open shell made by special pure aluminum with 1/2″-mounting. To be mounted on EMT-arms the J-shell is available (also available for SME compatible connections). Gold plated componentes.

Tip and cantileverDiamond on boron
DiameterFGS: 5�m
SFL: 6�m
Recommended tracking force2,2-2,5p
Impedance2 x approx. 20 Ohms
Output level @ 1kHz
(v = 5cm/s rms)		2 x 1mV, +/-2dB
Frequency range20-30,000Hz
Level differencemax. 1dB between 40Hz und 12.5kHz
Crosstalk ratio>26dB @ 1kHz
FIM<0,5%
Vertical tracking angle23� +/-3�
Compliance15�m/mN
Eff. mass at needle tipca. 1mg
ConnectionsGold plated connection pins
Weightapprox. 11g
Recomm. load impedance>= 100Ohm
Recomm. eff. tone arm mass15g to 35g
